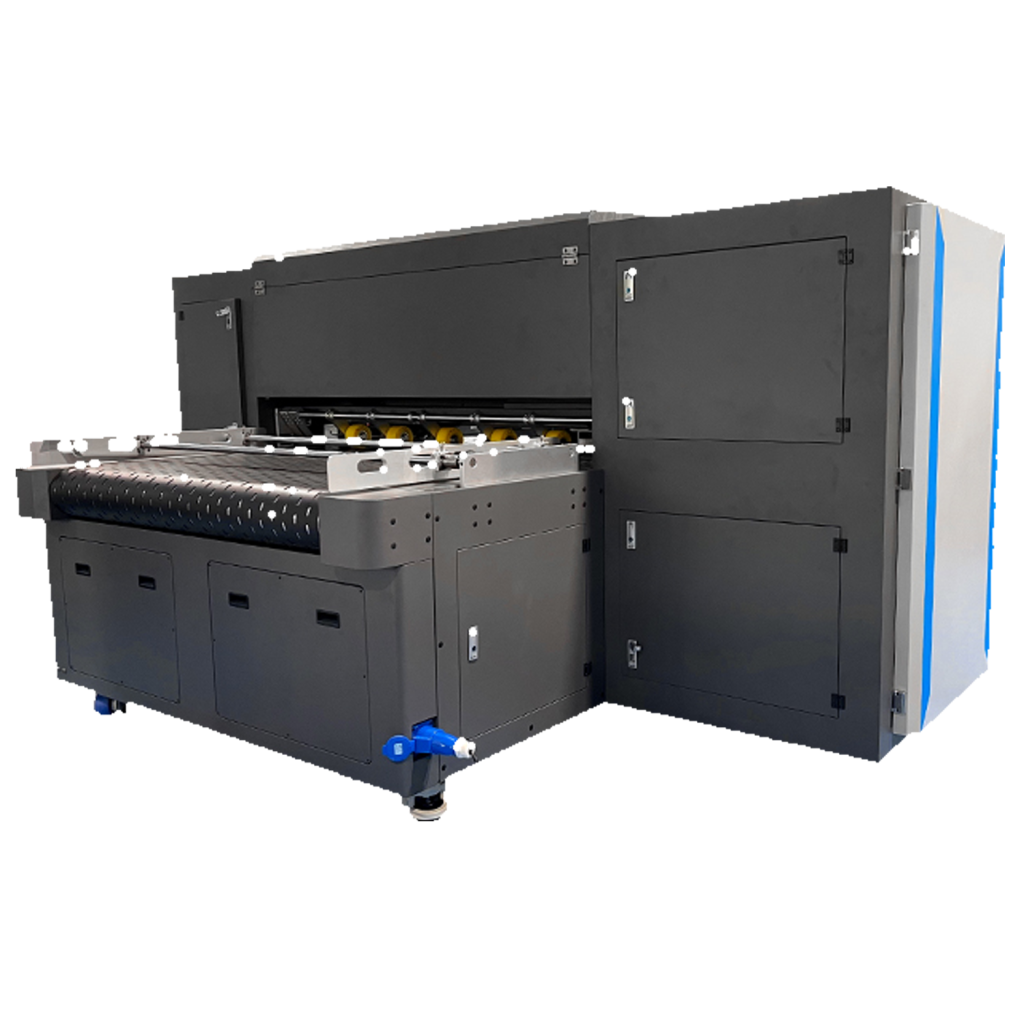

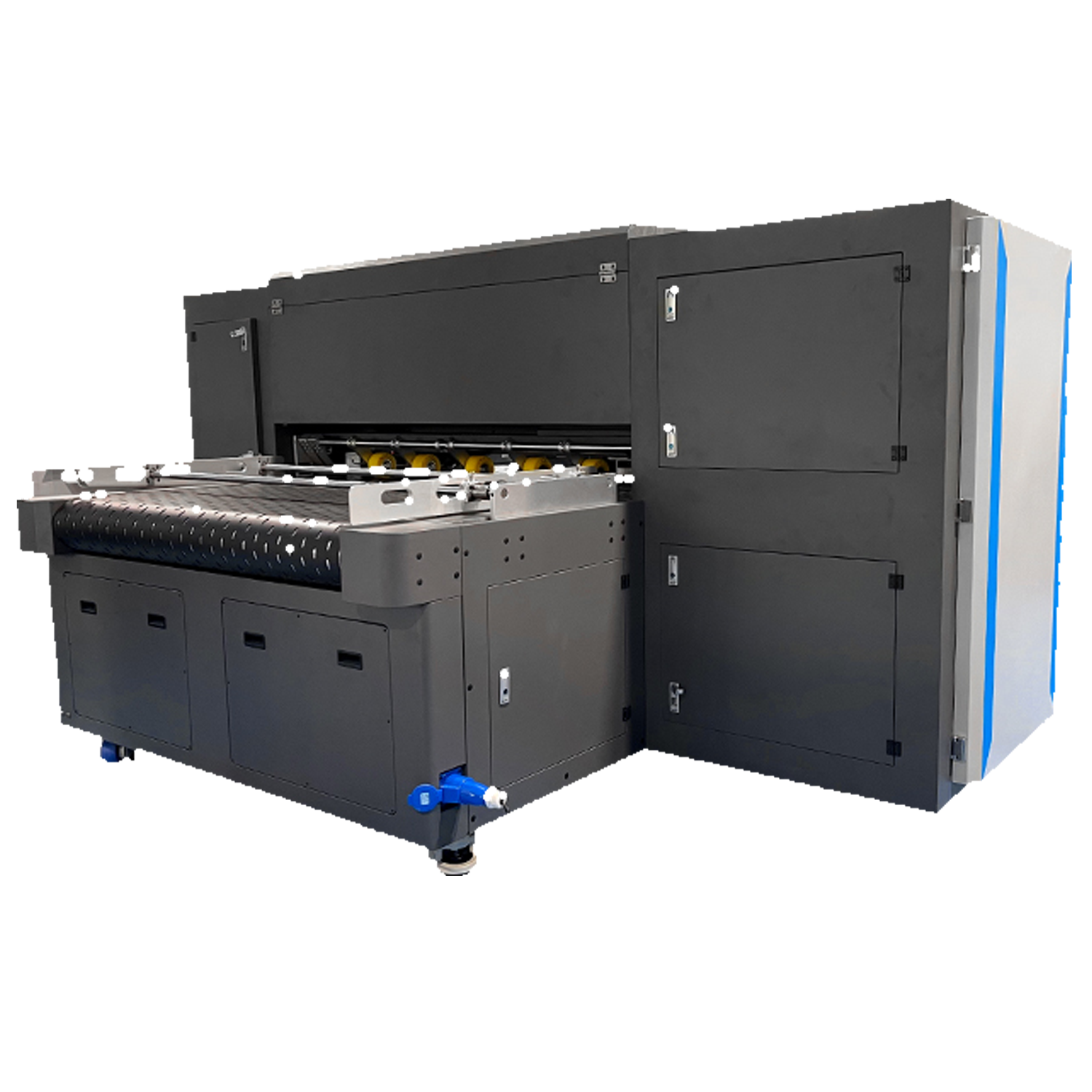

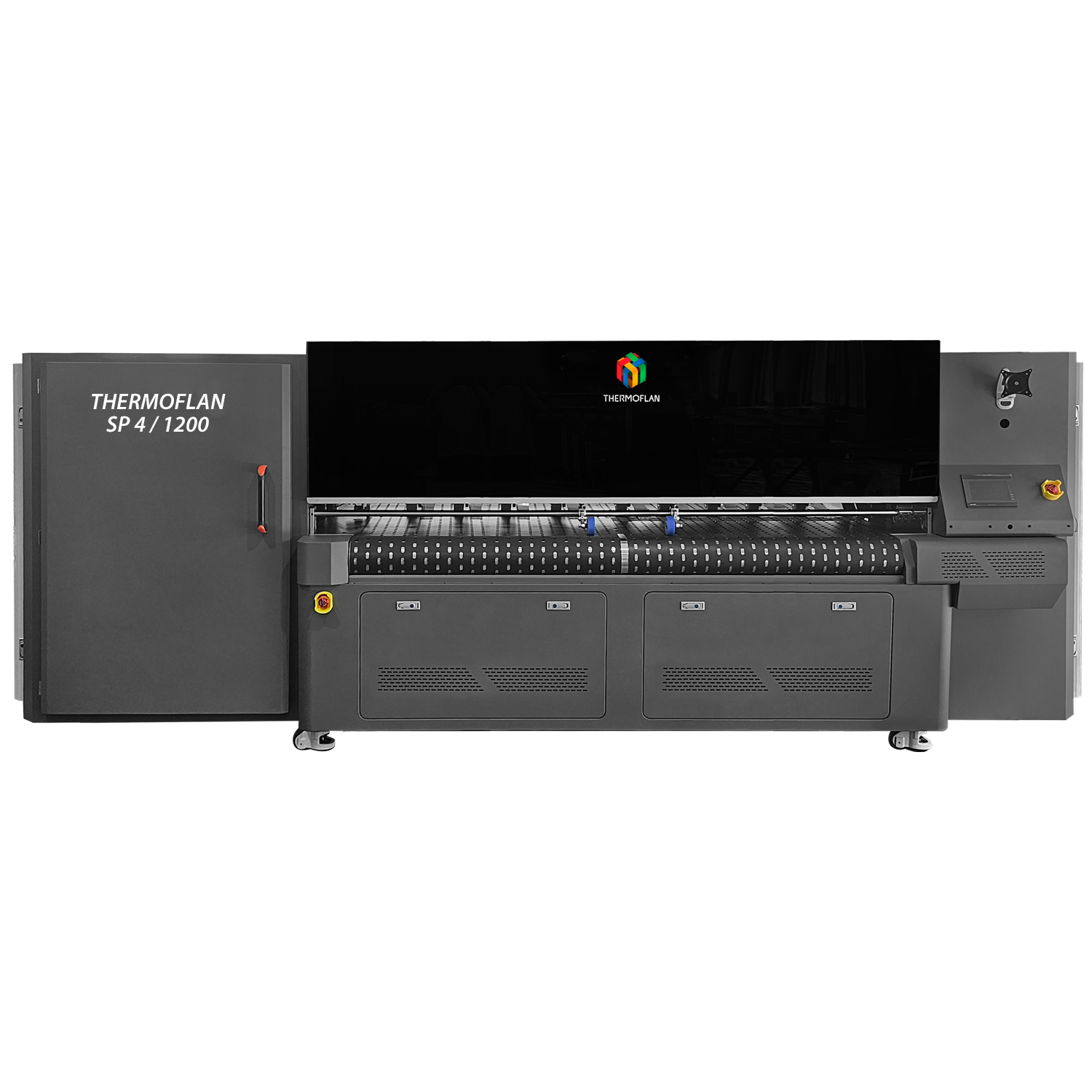

Single Pass SP 1200
From: 123800 €
The Single Pass SP 1200 packaging printer from the Single Pass range eliminates the waiting times associated with the multiple passes required by other printing technologies.
Thanks to its single-pass printing process, it significantly accelerates production, thereby reducing time-to-market, a key advantage in the packaging industry.
This machine allows for the printing of custom designs, making it particularly suitable for dynamic markets, such as seasonal or promotional products, where flexibility and speed are essential.
Number of colours:
Une couleur
Multicouleurs
Shape:
Forme relativement plane
Quantity:
Series
Materials:
Discover...
Technical sheet
The Single Pass SP 1200 offers versatile format management, suitable for both small boxes and large packaging.
– Welded stainless steel machine frame.
– Enclosed body to limit dust.
– Multiple openings for monitoring printing and ease of maintenance.
– Equipped with the latest generation HP heads.
– Fast implementation thanks to Single Pass technology, which allows printing in a single pass.
– Automatic image management via a RIP in French.
– Exclusive internal ink circulation technology for print heads.
– Dual negative pressure ink supply system that guarantees perfect ink regulation.
– User-friendly interface with a color touch screen that facilitates dialogue with the operator.
– Automatic print head height calibration.
– Laser sensor to detect the arrival of the part and start the printing process.
– Perforated conveyor belt with vacuum suction for precise holding and adjustable mechanical guides.
– Water-based inks, which reduce environmental impact.
– Optional automatic cardboard feeder that ensures a regular supply and reduces the costs of manual feeding.
– Possible integration into automated production lines, contributing to overall optimization of the manufacturing process (strapping machines, etc.).
Features:
Colors
Cyan – Magenta – Yellow – Black
Types and number of heads
HP head / 4 heads
Maximum print width
1200 mm
Maximum material width
2500 mm
Maximum material thickness
80 mm
Print speeds
5 m/min – 15 m/min – 30 m/min
Resolutions
1200*300 dpi – 1200*600 dpi – 1200*1200 dpi
RIP Software
Flexiprint
Interface
Ethernet
Supported document formats
AI – PDF – BMP – JPG – JPEG – EPS – PSD – PICT – WMF – PNG – TIFF
Compatible software
CorelDRAW – Photoshop – AutoCAD – Inkscape or any software capable of exporting into supported file formats
Operating system
Windows
Machine dimensions
5820*2250*2200 mm
Machine weight
2500 kg
Power
8 Kw
Option

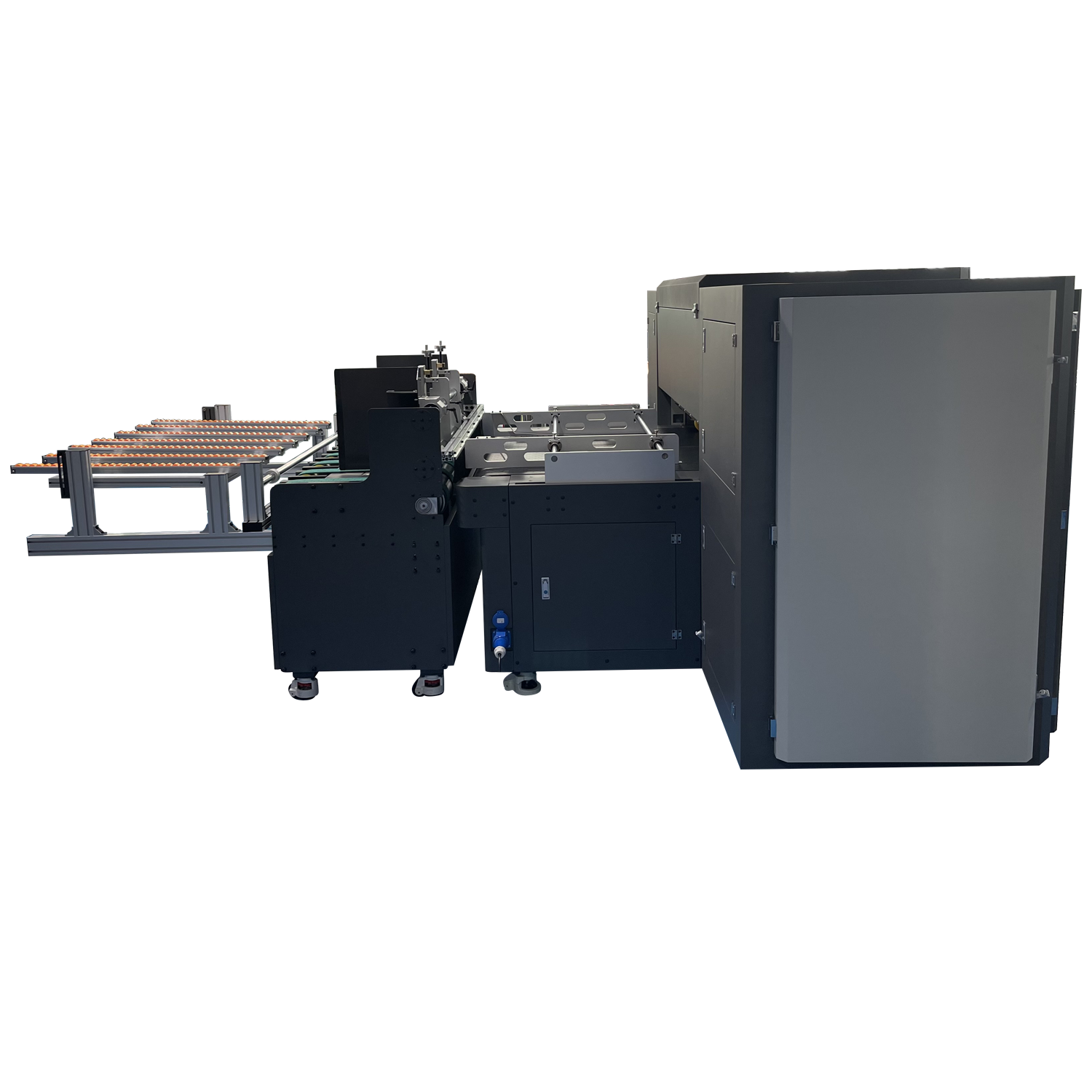

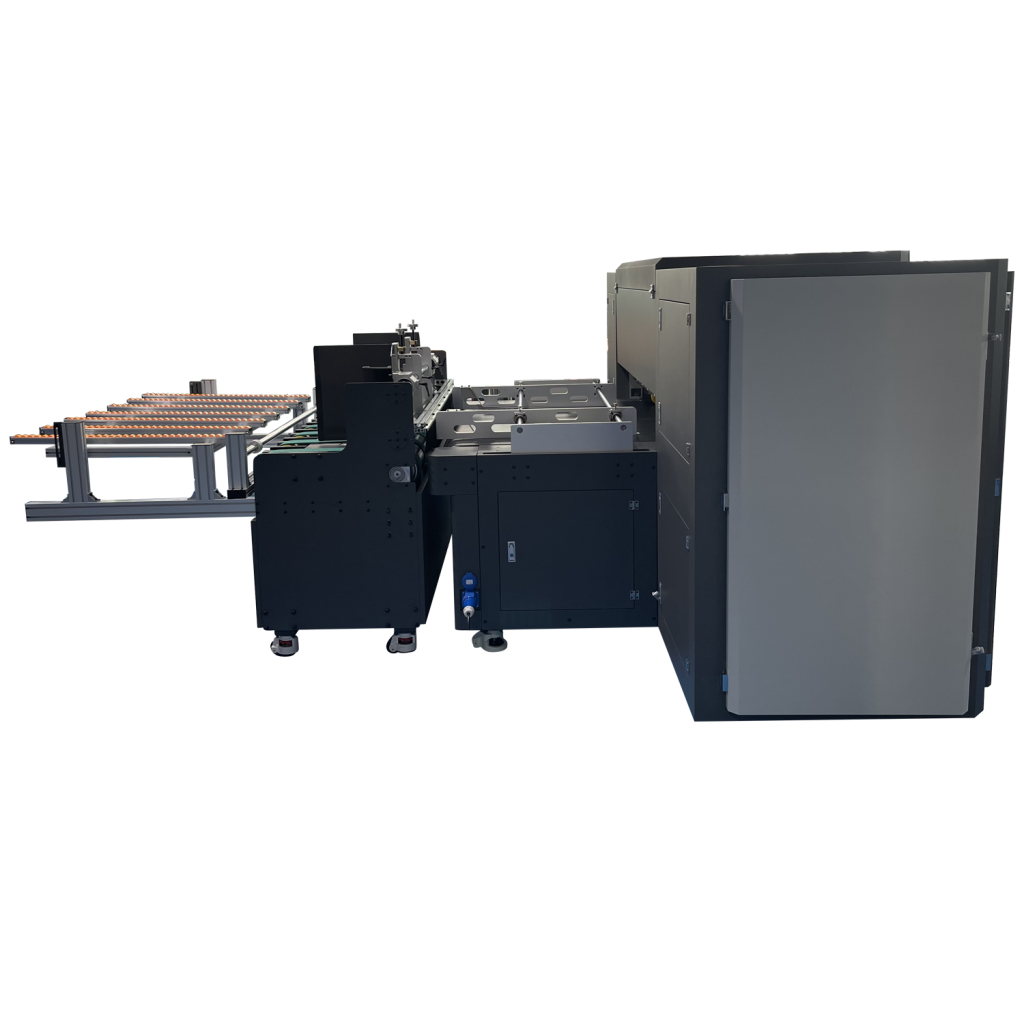

Cardboard feeder:
– Dimensions 2870*1780*1700 mm
– Weight 1000 kg
– Power 2.2 Kw
– Media width 2500 mm
– Feeding speeds 5 m/min -15 m/min – 30 m/min
– Media thickness 450 mm
