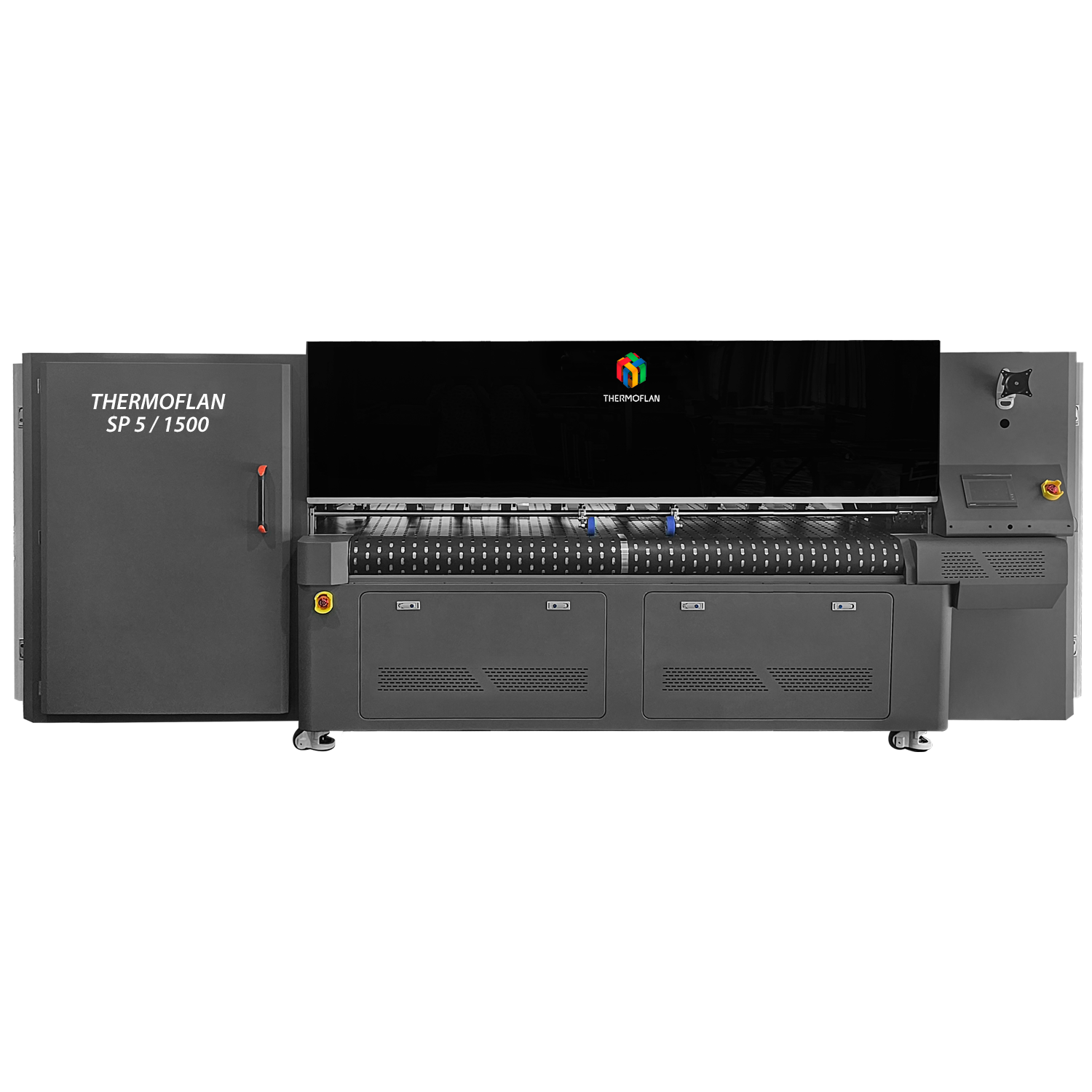

Single Pass SP 1500
From: 143800 €
The Single Pass SP 1500 designed for packaging revolutionizes traditional printing techniques.
Thanks to its cutting-edge technology, it meets the requirements of modern industries, offering flexibility, productivity, and exceptional quality.
Equipped with high-resolution print heads and optimized ink technology, the Single Pass printer ensures precise and sharp markings in a single pass, including barcodes, logos, and graphics on a wide range of packaging materials such as cardboard, plastic, and many others.
Number of colours:
Une couleur
Multicouleurs
Shape:
Forme relativement plane
Quantity:
Series
Materials:
Discover...
Technical sheet
Flexible and versatile, the Single Pass SP 1500 inkjet printer adapts to a variety of formats, shapes, and surfaces.
– Welded stainless steel machine frame.
– Enclosed body to minimize dust.
– Multiple openings for print monitoring and easy maintenance.
– Equipped with the latest generation HP printheads.
– Rapid setup thanks to Single Pass technology, which enables printing in a single pass.
– Automatic image management via a French-language RIP.
– Exclusive internal ink circulation technology for printheads.
– Dual negative pressure ink supply system that ensures perfect ink regulation.
– User-friendly interface with a color touchscreen to facilitate operator interaction.
– Automatic printhead height calibration.
– Laser sensor to detect the arrival of the part and trigger printing.
– Perforated conveyor belt with vacuum material suction for precise holding and adjustable mechanical guides.
– Water-based inks to reduce environmental impact.
– Optional automatic cardboard feeder that ensures consistent feeding and reduces the costs of manual feeding.
– Can be integrated into automated production lines, contributing to global manufacturing process optimization (strapping machine, etc.).
Features:
Colors
Cyan – Magenta – Yellow – Black
Types and number of heads
HP head / 5 heads
Maximum print width
1500 mm
Maximum material width
2500 mm
Maximum material thickness
80 mm
Print speed
5 m/min – 15 m/min – 30 m/min
Resolutions
1200*300 dpi – 1200*600 dpi – 1200*1200 dpi
RIP software
Flexiprint
Interface
Ethernet
Supported document formats
AI – PDF – BMP – JPG – JPEG – EPS – PSD – PICT – WMF – PNG – TIFF
Compatible software
CorelDRAW – Photoshop – AutoCAD – Inkscape or any software capable of exporting in supported file formats
Operating system
Windows
Machine dimensions
5820*2250*2200 mm
Machine weight
2500 kg
Power
8 Kw
Option
Feeder for cardboard:
– Dimensions 2870*1780*1700 mm
– Weight 1000 kg
– Power 2.2 Kw
– Media width 2500 mm
– Feeding speeds 5 m/min – 15 m/min – 30 m/min
– Media thickness 450 mm
