Single Pass SP 300
From: 32250 €

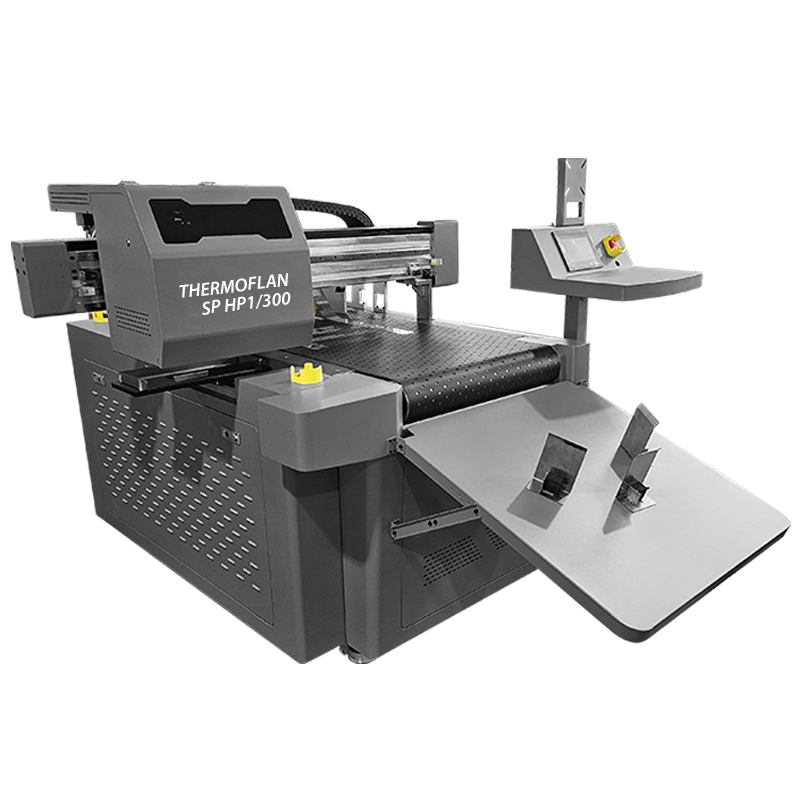

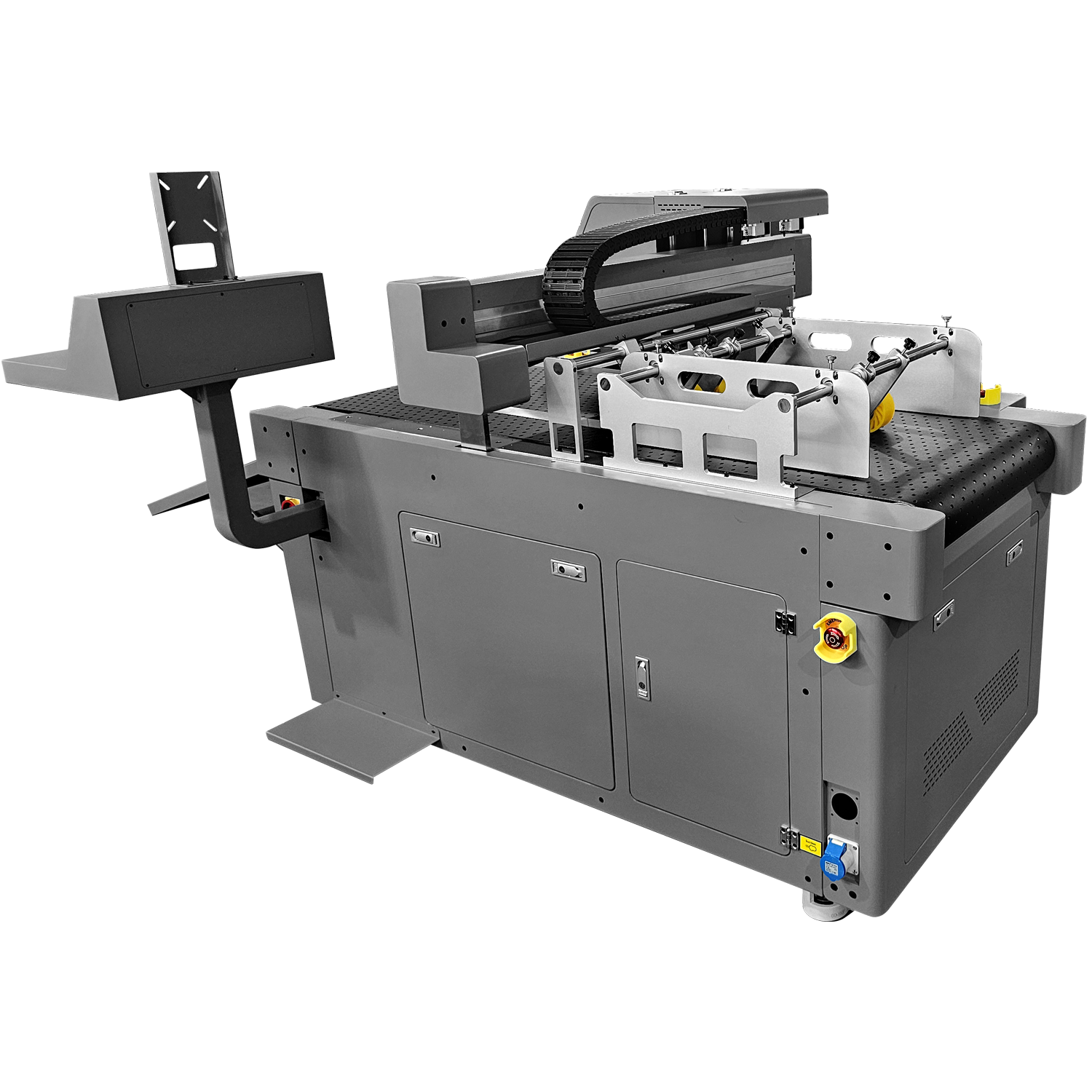

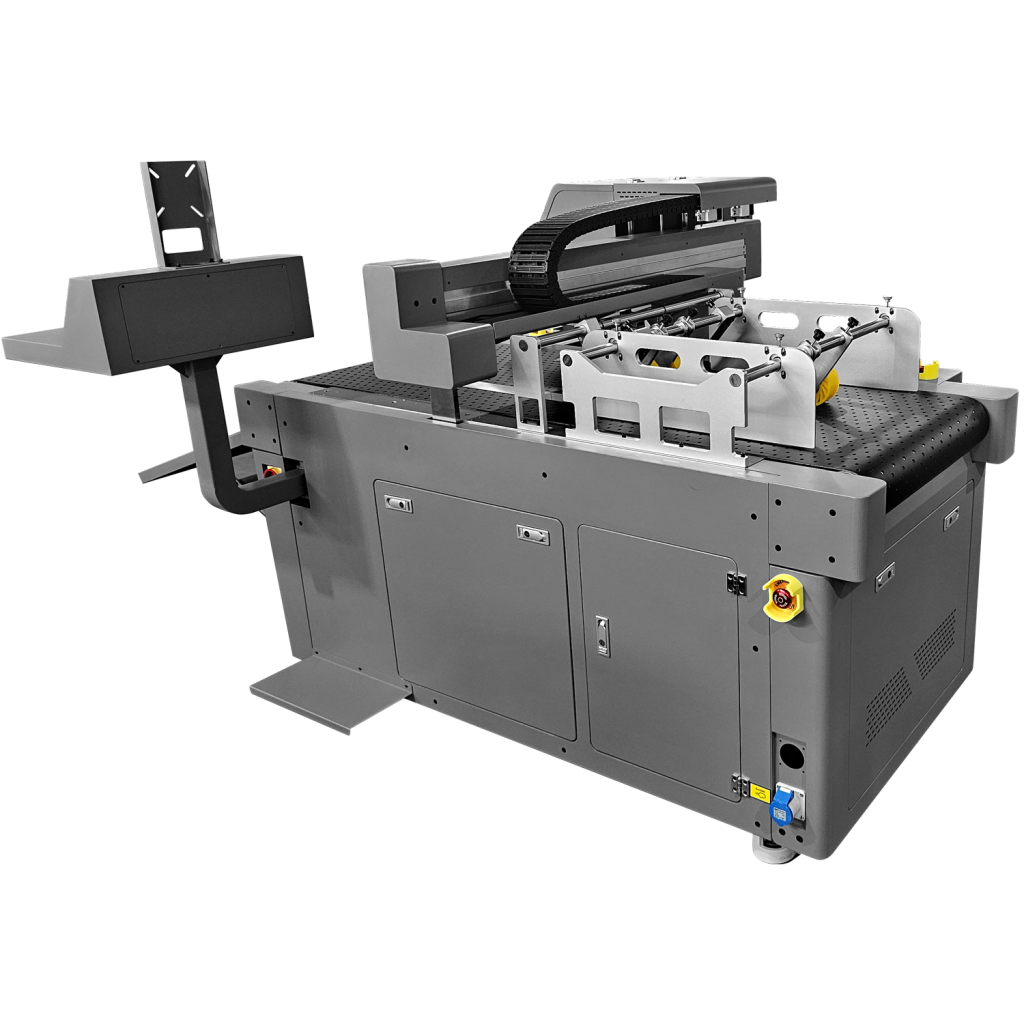

The Single Pass SP 300 packaging printer, equipped with state-of-the-art technology, allows for direct printing onto packaging materials such as corrugated cardboard, folding boxes, wine crates, and many others.
It stands out for its ability to print in a single pass. The material passes under the print heads once, without reversing, enabling fast and efficient production with consistent quality.
It is ideal for large runs, but also maintains great flexibility for smaller or customized orders.
Number of colours:
Une couleur
Multicouleurs
Shape:
Forme relativement plane
Quantity:
Series
Materials:
Discover...
Technical sheet
The Single Pass 300 printer revolutionizes the industry with its speed, print quality, and flexibility. It allows for direct printing onto various packaging substrates, including kraft bags.
– Welded stainless steel machine frame.
– Enclosed body to minimize dust.
– Multiple access points for print monitoring and easy maintenance.
– Equipped with the latest generation HP printheads.
– Rapid setup thanks to Single Pass technology, enabling printing in a single pass.
– Automatic image management via a French-language RIP.
– Exclusive internal ink circulation technology for the printheads.
– Dual negative pressure ink supply system for perfect ink regulation.
– User-friendly interface with a color touchscreen to facilitate operator interaction.
– Automatic printhead height calibration.
– Laser sensor to detect the arrival of the workpiece and trigger printing.
– Perforated conveyor belt with vacuum suction for precise holding, plus adjustable mechanical guides.
– Water-based inks to reduce environmental impact.
– Optional automatic cardboard feeder ensures steady supply and reduces manual feeding costs.
– Can be integrated into automated production lines, contributing to overall manufacturing process optimization (e.g., strapping machines).
Features:
Colors
Cyan – Magenta – Yellow – Black
Type and number of heads
HP Printhead / 1 head
Maximum print width
300 mm
Maximum material width
680 mm
Maximum material thickness
150 mm
Print speed
5 m/min – 15 m/min – 30 m/min
Resolutions
1200*300 dpi – 1200*600 dpi – 1200*1200 dpi
RIP Software
Flexiprint
Interface
Ethernet
Supported document formats
AI – PDF – BMP – JPG – JPEG – EPS – PSD – PICT – WMF – PNG – TIFF
Compatible software
CorelDRAW – Photoshop – AutoCAD – Inkscape or any software capable of exporting into supported file formats
Machine dimensions
1126 mm* 2150 mm* 1500 mm
Machine weight
600 kg
Power
3.5 Kw
Option
Feeder for cartons and bags:
– Dimensions 850*850*1200 mm
– Weight 1000 kg
– Power 2.2 Kw
– Media width 2500 mm
– Feeding speeds 5 m/min -15 m/min – 30 m/min
– Media thickness 450 mm
